You’re handed a document during a property purchase or project.

It’s filled with lines, numbers, and symbols. At first, it feels hard to read.

That document is called plat of survey.

So before you ignore it, it helps to know what it actually shows and why it matters.

Why This Document Shows Up at Important Moments

Most people don’t ask for a plat of survey.

Instead, it appears when something important is happening, like:

• Buying a home
• Reviewing land details
• Planning a project

Because of that, the timing matters.

If you misunderstand it, you may move forward without knowing key details about your property.

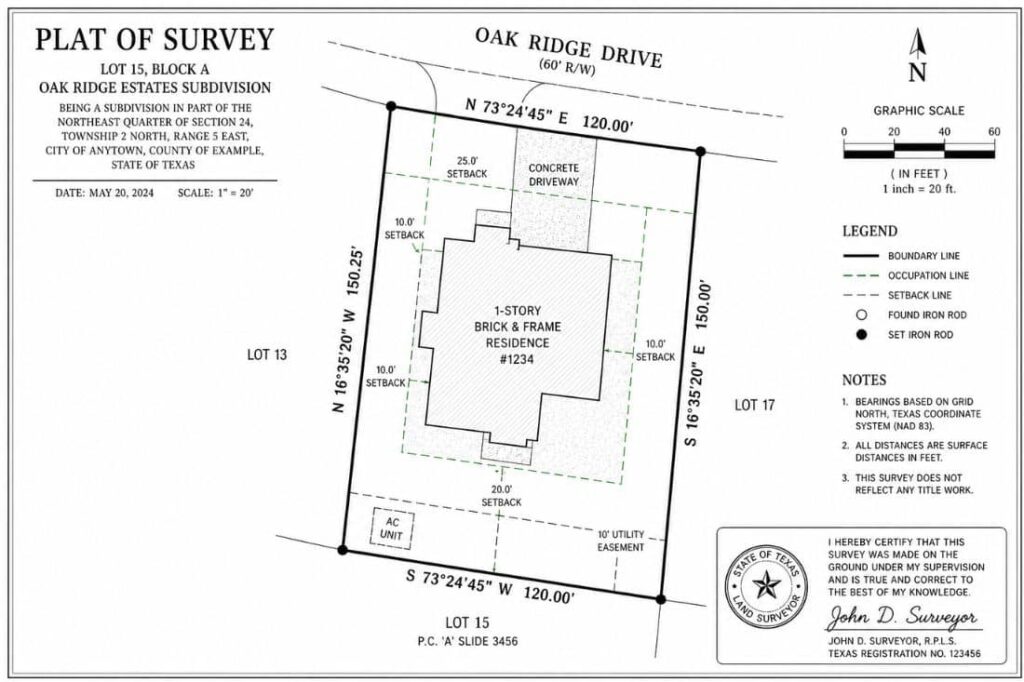

What You’re Really Looking At

A plat of survey is not just a drawing.

It’s a detailed map of your property that shows:

• Boundary lines
• Measurements
• Structures on the land

It also gives a clear layout of how your property fits with nearby land.

Why People Misread It

At first, the document can feel overwhelming.

Many people:

• Focus only on the shape
• Ignore small notes
• Skip measurements

A plat of survey can look simple at first, but many of the important details are easy to miss. When something doesn’t seem clear, it’s worth taking a closer look or reaching out to a professional. Understanding how to read these documents properly can save you from costly mistakes and give you a much clearer picture of your property.

The One Detail Most People Miss

One of the biggest mistakes is ignoring how close structures are to the boundary.

For example:

• A fence may sit near the line
• A driveway may extend farther than expected
• A structure may be closer than allowed

These details can affect what you can build or change later.

How This Affects Real Decisions

A plat of survey is not just for reference.

It directly impacts decisions like:

• Where you can build
• Where you can install a fence
• How your property lines are defined

Because of this, reading it correctly can prevent future problems.

A Common Situation Homeowners Face

A buyer reviews a plat of survey during closing.

Everything looks fine at a glance.

Later, they plan to install a fence or expand their space.

That’s when they realize something sits closer to the boundary than expected.

Now, changes become limited.

This situation happens more often than people expect.

Why Properties Make This More Important

Properties can vary in shape and layout.

Some lots:

• Are not perfectly square
• Have irregular boundaries
• Include easements or shared spaces

Because of this, small details on a plat of survey can make a big difference.

When You Should Take a Closer Look

You should pay more attention to your plat of survey if:

• You’re planning construction
• You’re installing a fence
• You’re unsure about your boundaries

In these cases, it helps to verify your property lines before making changes so you avoid costly mistakes later.

Why This Document Gives You Clarity

Once you understand your plat of survey, everything becomes easier.

You can:

• Make better decisions
• Avoid boundary issues
• Move forward with confidence

Instead of guessing, you have a clear picture of your property.
