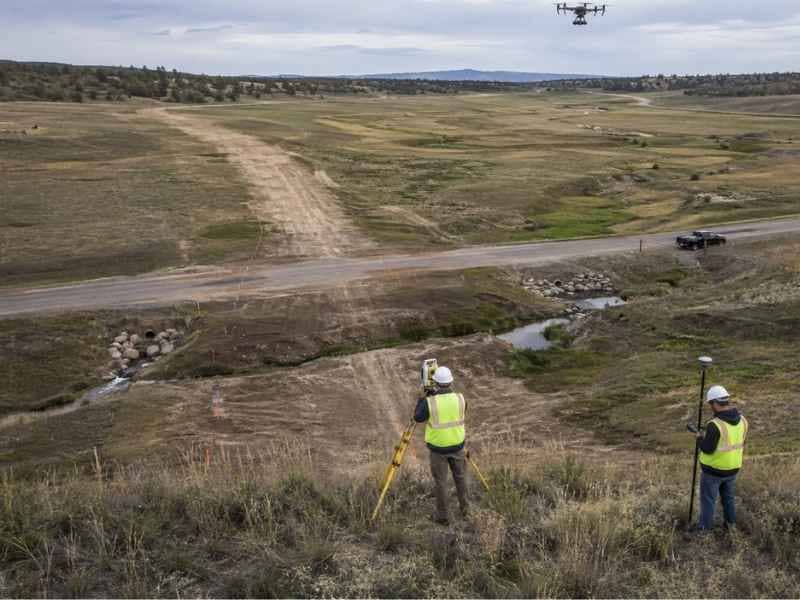

Large sites bring a hard question. Where should water lines, sewer lines, power lines, and other pipes go? Lidar mapping teams can help answer that question before anyone digs a trench. Instead of guessing at routes on a flat map, planners get a real picture of the ground. That picture shows every rise, dip, and slope. It makes it much easier to pick a smart path for a utility corridor across a big property.

Using LiDAR Mapping to Trace Long Utility Routes Across Large Propertie

A big property can stretch for hundreds or even thousands of feet. Walking the whole thing by hand takes a long time. It’s also easy to miss small changes in the ground along the way. LiDAR fixes this. It scans the whole site at once. It builds a full picture of the land from one end to the other.

With that data ready, planners can trace a possible route across the whole property. They can see where the ground rises. They can see where it drops. They can spot places where a straight line might not be the best path. This kind of long view is what makes early corridor planning possible, well before anyone commits to a design.

Identifying Terrain Breaks That Could Affect Utility Corridor Alignment

Flat ground is rare on a real site. Most properties have slopes, ditches, small hills, or low spots. Each of these breaks up the land. Each one can push a utility corridor in a new direction. Each one can also add cost if the route runs straight through it.

LiDAR data shows these breaks clearly. A sharp slope might mean extra grading work. A low spot might need drainage fixes before pipes go in. A steep bank might force the corridor to shift a few feet to one side. Seeing all of this early lets planners compare route options side by side. No one has to find out about a problem after design work has already started.

Mapping Crossings Where Utility Corridors Meet Roads and Other Site Features

Every long corridor has to cross something at some point. It might be a road. It might be a drainage channel. It might be a retaining wall. Each crossing needs its own plan. Running a pipe under a road is not the same job as running it across open ground.

LiDAR mapping helps teams spot these crossings early, while the route is still just a line on a map. Once a crossing is found, the team can start asking the right questions. Does the pipe need to go under the road? Can it run beside it instead? Is there enough room near the drainage channel? Answering these questions before the route is locked in saves time once real construction planning begins.

Comparing Multiple Utility Corridor Options Before Detailed Design Begins

This is where LiDAR really helps. One detailed scan of the property can support many different route ideas, not just one. Planners don’t need to send a crew back out every time someone wants to test a new path.

Using the same data, a team can lay out two, three, or four possible corridors. They can compare them side by side. One route might be shorter, but it crosses more rough ground. Another might be longer, but it avoids a drainage area completely. A third might connect better to nearby land. Comparing these options on paper, before engineering work starts, keeps the project moving. It also helps avoid wasted hours on a route that won’t actually work.

Building a Shared Terrain Dataset for Engineers Planning Different Utilities

Big sites rarely need just one utility. Water, sewer, power, and communication lines often run through the same area. Sometimes they even cross each other or run side by side. If each team works from its own separate data, small mismatches can creep in between the systems.

A shared LiDAR surface fixes this problem. It gives every team the same starting point. Civil engineers, utility designers, and other planners can all pull from one shared land model, instead of each one collecting their own measurements. This step matters most in the early planning stage. It comes well before construction staking or final layout work. Getting this base right early makes it much easier for different utility systems to line up once real design work begins.

Frequently Asked Questions

Can LiDAR mapping help plan routes for utilities across a large site?

Yes. LiDAR gives planners detailed information about the land. This makes it easier to compare possible utility corridors before detailed engineering starts, which can save time and cut down on surprises later.

What types of utilities can benefit from LiDAR corridor planning?

Water lines, sewer lines, storm systems, power lines, and communication lines can all benefit. Other long, straight systems can benefit too, depending on what the project needs.

Why does terrain matter when choosing a utility corridor?

Changes in height, slopes, low spots, and other obstacles all affect how long a route ends up being. They also affect how hard it is to build and how much extra engineering the project might need.

Can LiDAR help compare several possible utility routes?

Yes. One detailed scan lets planners test different route options using the same land data. There’s no need to collect new measurements every time someone wants to try a new path.

Does LiDAR mapping replace detailed utility engineering or construction staking?

No. LiDAR supports early planning and helps teams understand the site. Final engineering, checking what’s underground, and construction layout still need extra professional work and more exact, project-specific measurements.
